An overview of the voltage status and the function of the device is at your fingertips in the mobile app and also obvious at a glance on the device thanks to the colour Bargraph and LED.
Top LED indicator
- Flashing operation from battery only
- Steady glow mains operation
Colour signalling
- Blue operation on higher power (100%)
- Purple operation on lower power (approx. 50%)
- Red indicates warning and error condition (e.g. battery voltage drops below 12 V or fence load jumps)
If the battery voltage drops below 11.6 V, the warning siren (beeping) is triggered. If a discharged battery and an adapter are connected at the same time, the red indicator LED is illuminated until the battery is charged to at least 12 V.

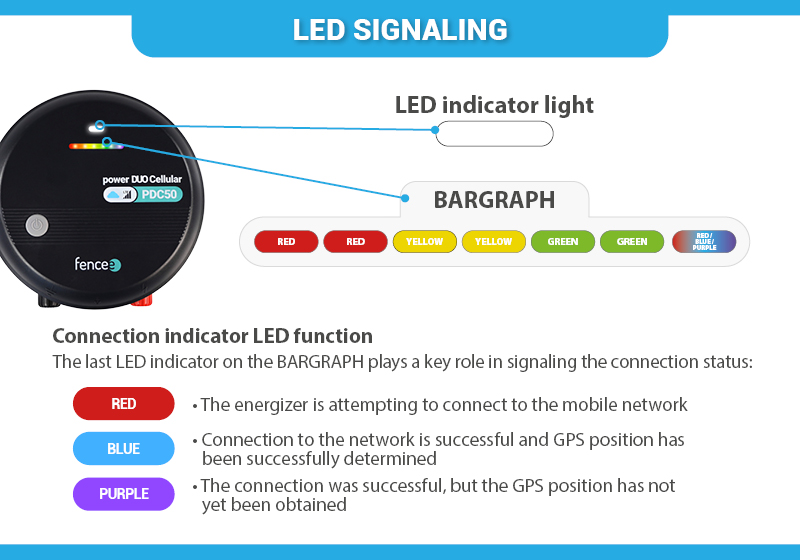

Colour BARGRAF
A BARGRAF is integrated on the Power DUO Cellular PDC models to provide easy orientation and visibility of input voltage, GPS and cellular network connection status. It consists of seven LED indicator lights arranged from left to right.
Bargraph functions
The first 6 LED lights provide visual information about the voltage status of the barrage. The LEDs progress from the first red one to the one corresponding to the current voltage, where they stop momentarily.
LED connection indication function
The last connection LED indicates the status of the GPS and the connection to the mobile network and the status is indicated continuously.
- Red device is attempting to connect to the mobile network
- Purple connection has been successful but GPS position has not yet been acquired
- Blue connection to the network is successful and the GPS position has been successfully acquired
